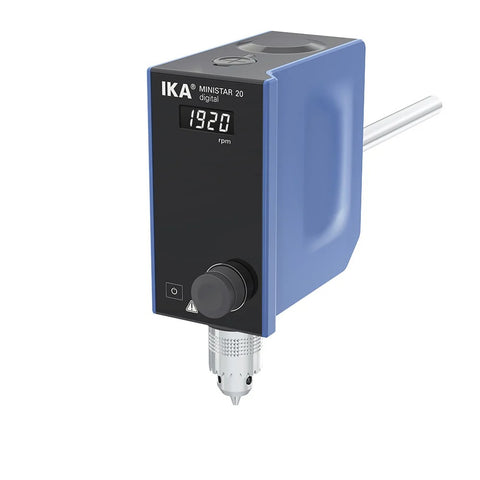

IKA Ministar Digital Overhead Stirrers

Category Overhead Stirrers
Manufacturer IKA
Overview

The space-saving high performers series has been complemented by additional models. The new and easy-to-use stirrers convince with perfect basic functionalities, as well as with a compact design.

Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

Features:

  • Guarantee a constant torque over the entire rpm range
  • Operation takes place using a stable rotary knob. The display clearly shows the rotational speed.
  • Regular software updates can be undertaken rapidly and simply via the USB interface.
    Key Attributes
    Maximum volume (L): 15, 20, or 50 L
    Minimum Volume (L): N/A
    Speed max (rpm): 2000, 1000, or 500
    Speed min (rpm): 50
    Max temperature (◦C): N/A
    Plate:  N/A
    Plate material: N/A
    Torque max (Ncm): 20, 40, or 80
    Controls: Digital
    Timer: No
    Programmable: No
    Reverse rotation: No
    Warranty (years): 2
    Weight (lbs): 3.79
    Dimensions Width (in): 2.8
    Dimensions Height (in): 7.6
    Dimensions Length (in): 6.0



    Manufacturer Specifications
    Model MINISTAR 20 digital MINISTAR 40 digital MINISTAR 80 digital
    Stirring quantity max. per stirring position (H2O) 15 l 25 l 50 l
    Motor rating input 60 W 60 W 60 W
    Motor rating output 46 W 46 W 46 W
    Motor principle Brushless DC Brushless DC Brushless DC
    Speed display LED LED LED
    Speed range 0/50 - 2000 rpm 0/50 - 1000 rpm 0/50 - 500 rpm
    Viscosity max. 10000 mPas 30000 mPas 60000 mPas
    Output max. at stirring shaft 42 W 42 W 42 W
    Permissible ON time 100% 100% 100%
    Torque max. at stirring shaft 20 Ncm 40 Ncm 80 Ncm
    Speed control Turning knob Turning knob Turning knob
    Setting accuracy speed ±1 rpm ±1 rpm ±1 rpm
    Deviation of speed measurement n > 300rpm ±1 % ±1 % ±1 %
    Deviation of speed measurement n < 300rpm ±3 rpm ±3 rpm ±3 rpm
    Stirring element fastening chuck chuck chuck
    Chuck range diameter 0.5 - 8.2 mm 0.5 - 8.2 mm 0.5 - 8.2 mm
    Hollow shaft, inner diameter 8.5 mm 8.5 mm 8.5 mm
    Hollow shaft (push-through - when stopped) yes yes yes
    Fastening on stand extension arm extension arm extension arm
    Extension arm diameter 13 mm 13 mm 13 mm
    Extension arm length 160 mm 160 mm 160 mm
    Nominal torque 0.075 Nm 0.4 Nm 0.8 Nm
    Timer display none none none
    Housing material alu-cast coating / thermoplastic polymer alu-cast coating / thermoplastic polymer alu-cast coating / thermoplastic polymer
    Dimensions (W x H x D) 70 x 193 x 147 mm 70 x 193 x 147 mm 70 x 193 x 147 mm
    Weight 1.56 kg 1.72 kg 1.72 kg
    Permissible ambient temperature 5 - 40 °C 5 - 40 °C 5 - 40 °C
    Permissible relative humidity 80% 80% 80%
    Protection class according to DIN EN 60529 IP 54 IP 54 IP 54
    USB interface yes yes yes
    Voltage 100 - 240 V 100 - 240 V 100 - 240 V
    Frequency 50/60 Hz 50/60 Hz 50/60 Hz
    Power input 69 W 69 W 69 W
    Power input standby 0.5 W 0.5 W 0.5 W
    DC Voltage 24 V= 24 V= 24 V=
    Current consumption 2900 mA 2900 mA 2900 mA
