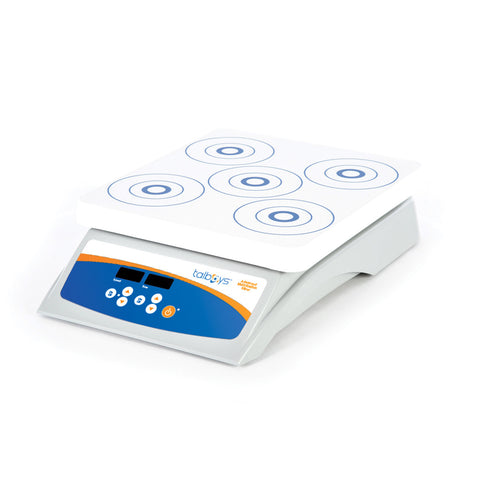

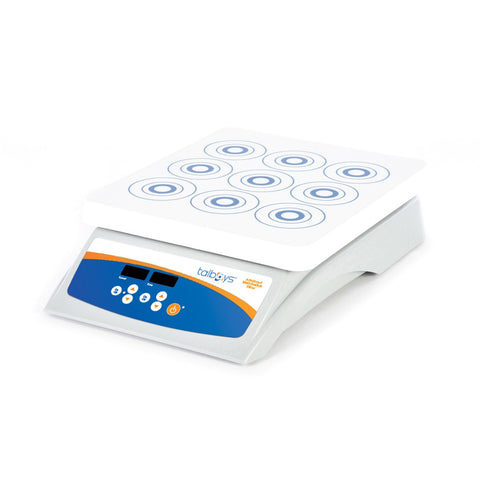

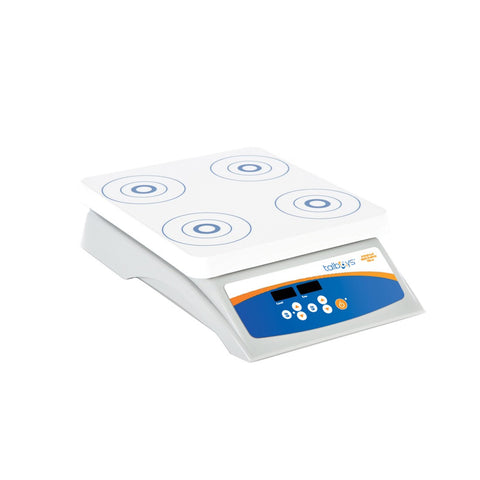

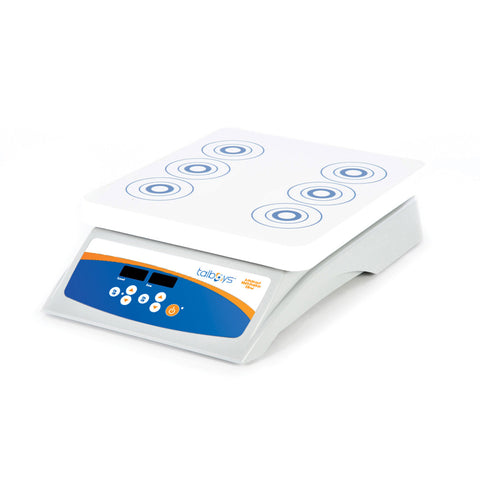

Advanced Multi-Position Stirrer

Category Magnetic Stirrers
Manufacturer Ohaus
Country of manufacture the United States of America
Overview

Talboys Advanced Multi-Position Stirrers are powerful magnetic stirrers with precise speed control that offers repeatable performance. Synchronized operation ensures uniform mixing at each position.

Stirrer is supplied with a 1" (2.5cm) PTFE coated stir bar for each position and can be run in conditions from 5 to 40°C (41 to 104°F), 20% to 80% relative humidity, non-condensing. Stirrer includes a 5 year, industry leading limited warranty on parts and labor.

Features:

  • Synchronized and uniform mixing
  • Low profile design
  • 5 year industry leading warranty
Microprocessor Control Precisely regulates speed through the entire range. Stirring function, with continuous duty motor and magnet, maintains speed, even under changing load or viscosity.
LED Display Touch pad controls with easy-to-read, independent LED displays for speed and time. Speed is adjustable in 10rpm increments. Timer will display elapsed time or, when programmed to user defined limit, will shut off unit when time reaches zero.
Top Plate Material Features a chemical resistant, reflective white top plate surface that is easy to clean.
Large Top Plate Stirs multiple vessels at once with helpful position indicators.
Low Profile Design Takes up minimal space. Spill-resistant housing channels fluids away from internal components. Cast aluminum base offers durability and added stability.
Speed Ramping Feature Slowly increases speed for improved safety and enhanced coupling. Avoids splashing, improves spin bar control and provides excellent low speed control.
Audible Alarm In timed mode, alarm will sound when time reaches zero.



Key Attributes
Maximum volume (L):

4 position: 1.00 L ea.
5 position: 0.6 L ea.
6 position: 0.4 L ea.
9 position: 0.25 L ea.

Minimum Volume (L): N/A
Speed max (rpm): 1400
Speed min (rpm): 60
Max temperature (◦C): N/A
Plate: Square
Plate material: Glass filled nylon
Torque max (Ncm): N/A
Controls: Digital
Timer: Yes
Programmable: No
Reverse rotation: No
Warranty (years): 5
Weight (lbs): N/A
Dimensions Width (in): 17
Dimensions Height (in): 11
Dimensions Length (in): 4



Manufacturer Specifications



Stir Positions 4 5 6 9
Control Type Digital
Frequency 50 / 60 Hz
Voltage 120V
Amps 1.3
Watts 85
Top Plate Material Glass Filled Nylon
Top Plate Dimensions 12.5 x 11" (31.8 x 27.9cm)
Speed Range 60 to 1400 rpm
Speed Stability 60 to 250 rpm ± 5rpm
Timer 1 second to 160 hours
Maximum Capacity H2O 1L 400 mL 600 mL 250 mL
Maximum Vessel Diameter 5.1" (13cm) 3.2" (8cm) 3.75" (9.5cm) 3" (7.5cm)
Dimensions 17 x 11 x 4"
Operating Conditions Units can be run in conditions from 5 to 40°C (41 to 104°F), 20% to 80% relative humidity, non-condensing.
Applications Dissolution studies, media/reagent preparations, and titration studies.
Certifications UL
Warranty 5 year, industry leading limited warranty on parts and labor.
Unit Supplied With Unit includes a 92" (234cm) detachable, 3-wire cord and plug. Unit is also supplied with a 1" (2.5cm) PTFE coated stir bar for each position. NIST Traceable Calibration Certificateprovided by Troemner's ISO/IEC 17025 accredited laboratory. Multiple data points within the speed range and time function are reported on the certificate with the associated uncertainties.
FAQ

What kind of magnets are inside the Advanced Multi-Position Stirrer?

The magnets are Alnico 5.
