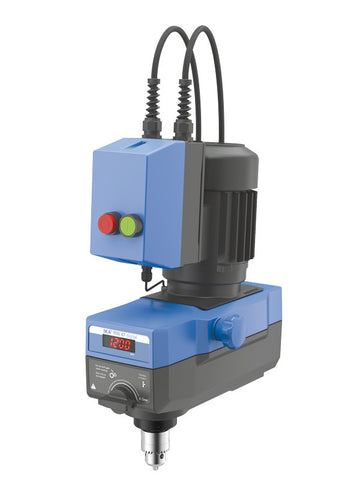

RW 47 Digital

Category Overhead Stirrers
Manufacturer IKA
Country of manufacture Malaysia
Overview

Extremely powerful, mechanically controlled laboratory stirrer designed for highly viscous applications for quantities up to 200 l (H2O). It is suitable for intensive mixing for use in laboratories and pilot plants. The stirrer comes equipped with a protection for overheating of the motor by means of self-locking temperature limiter. Additionally, to secure bowls, a stirring shaft protection and clamping fixture are optionally available.

  • Digital speed display
  • Infinitely adjustable speed (57 - 1300 rpm) in two speed ranges
  • Overload protection
  • Error code display
  • Robust, ergonomic design
  • Quiet operation
  • With constant power-drive



Key Attributes
Maximum volume (L): 200
Minimum Volume (L): N/A
Speed max (rpm): 1,560
Speed min (rpm): 69
Max temperature (◦C): N/A
Plate:  N/A
Plate material: N/A
Torque max (Ncm): 3,000
Controls: Digital
Timer: No
Programmable: No
Reverse rotation: No
Warranty (years): 2
Weight (lbs): 35.3
Dimensions Width (in): 5.7
Dimensions Height (in): 18.3
Dimensions Length (in): 14.1



Manufacturer Specifications
Stirring quantity max. per stirring position (H2O) 200 l
Motor rating input 490 W
Motor rating output 370 W
Motor principle three-phase current
Speed display LED
Speed range 69 - 1560 rpm
Viscosity max. 100000 mPas
Output max. at stirring shaft 300 W
Permissible ON time 100 %
Torque max. at stirring shaft 3000 Ncm
Torque max. at stirring shaft at 60 1/min (overload) 4642 Ncm
Torque max. at stirring shaft at 100 1/min 3000 Ncm
Torque max. at stirring shaft at 1.000 1/min 285 Ncm
torque I max. 3000 Ncm
torque II max. 620 Ncm
Speed range I (60 Hz) 69 - 330 rpm
Speed range II (60 Hz) 330 - 1560 rpm
Speed control stepless
Setting accuracy speed 1 ±rpm
deviation of speed measurement 10 ±rpm
Stirring element fastening chuck
Chuck range min. diameter 3 mm
Chuck range max. diameter 16 mm
Hollow shaft, inner diameter 13 mm
Hollow shaft (push-through - when stopped) no
Fastening on stand flange
Torque display no
Nominal torque 30 Nm
housing material alu-cast coating / thermoplastic polymer
clean room qualified no
explosion proofed no
Dimensions (W x H x D) 145 x 465 x 358 mm
Weight 16 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
RS 232 interface no
USB interface no
Analog output no
Voltage 3 x 400 / 3 x 230 V
Frequency 60 Hz
Power input 490 W
SHOW MORE SHOW LESS
