Talboys Professional Stirrer

Category Magnetic Stirrers
Manufacturer Ohaus
Country of manufacture the United States of America
Overview

Talboys Professional stirrers are designed for applications that require exceptional accuracy, stability, and repeatability. Exclusive safety features help protect operator and sample. Enhanced microprocessor control offers an external RTD probe option that delivers superior temperature control of the sample. Stirring function, with continuous duty motor and powerful magnet, maintains set speed even under changing load or viscosity. Separate LED displays for speed, and time allow user to view all settings at once. Can be run in conditions from 5 to 40°C (41 to 104°F), 20% to 80% relative humidity, non-condensing.

Stirrer is supplied with a 1.5" (3.8cm) PTFE coated stir bar.

Features:

  • Excellent temperature uniformity
  • LED display for temperature, speed, and time
  • Cool touch, chemical resistant housing
  • Includes RTD temperature probe kit
  • 5 year industry leading warranty

Also available with an NIST Traceable Calibration Certificate provided by Troemner's ISO/IEC 17025 accredited laboratory. Multiple data points within the speed range, and time functions, are reported on the certificate with the associated uncertainties.

Microprocessor Control Advanced electronics regulate both heating and stirring and bring samples to temperature quickly and efficiently. Precise speed control provides consistent stirring at all speeds. Powerful continuous duty motor delivers dependable and reliable stirring.
Control Panel Touch pad controls with easy-to-read, independent LED displays for temperature, speed, and time allow operator to view all settings at once. Provides repeatable and accurate results every time and is easily visible from outside fume hoods or across lab benches. Timer will display elapsed time or, when programmed to user defined limit, will shut off unit when time reaches zero. Display will show last used settings, even after power has been turned off.

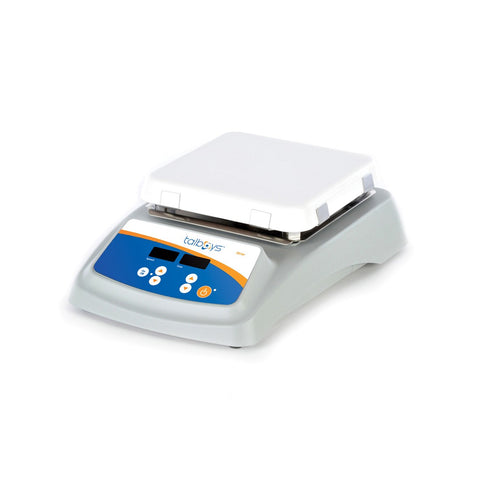

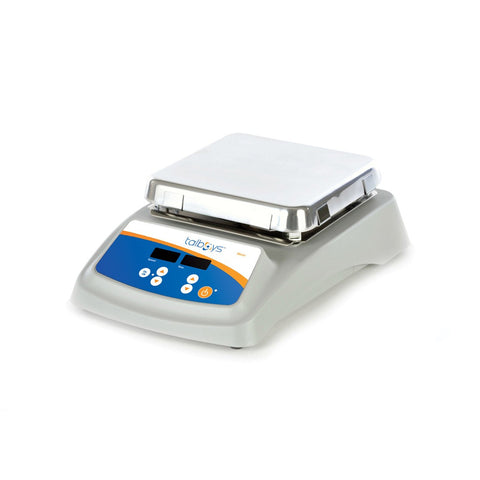

Top Plate Material Ceramic tops feature a chemical resistant, reflective white top plate surface that is easy to clean. Durable aluminum tops will not crack or chip.
Low Profile Design Takes up minimal space and fits easily into fume hoods. Spill-resistant design channels fluids away from internal components.
Cool Touch Housing Housing is made of a heat resistant polymer that is not only cool to the touch, but is also chemical resistant.
Stir Protection If stirrer motor stops or fails, unit will automatically shut down heater.
Speed Ramping Feature Slowly increases motor speed for improved safety and enhanced coupling. Avoids splashing, improves spin bar control, and provides excellent low end speed control.
Audible Alarm In timed mode, alarm will sound when time reaches zero or when unit reaches set-point temperature.
Key Attributes
Maximum volume (L): 2.5, or 6
Minimum Volume (L): N/A
Speed max (rpm): 1600
Speed min (rpm): 60
Max temperature (◦C): N/A
Plate: Square
Plate material: Aluminum, or Ceramic
Torque max (Ncm): N/A
Controls: Digital
Timer: Yes
Programmable: No
Reverse rotation: No
Warranty (years): 5
Weight (lbs): N/A
Dimensions Width (in): 14.8, or 17.9
Dimensions Height (in): 4.3
Dimensions Length (in): 9.9, or 13



Manufacturer Specifications
Part # 7 x 7
Aluminum
7 x 7
Ceramic
10 x 10
Aluminum
10 x 10
Ceramic
Control Type Digital
Unit Type Stirring
Frequency 50 / 60 Hz
Voltage 120V
Amps 0.4
Watts 50
Top Plate Material Aluminum Ceramic Aluminum Ceramic
Top Plate Dimensions 7 x 7" (17.8 x 17.8cm) 10 x 10" (25.4 x 25.4cm)
Speed Range 60 to 1600 rpm
Speed Stability ± 2%
Timer 1 second to 160 hours
Maximum Capacity H2O 2500 mL 6000 mL
Dimensions 14.8 x 9.9 x 4.3" 17.9 x 13 x 4.3"
Operating Conditions Units can be run in conditions from 5 to 40°C (41 to 104°F), 20% to 80% relative humidity, non-condensing.
Certifications TUV Listed
Warranty 5 year industry leading limited warranty on parts and labor
Unit Supplied With Unit includes a 92" (234cm) detachable, 3-wire cord and plug. Unit is also supplied with a 1.5" (3.8cm) PTFE coated stir bar.
