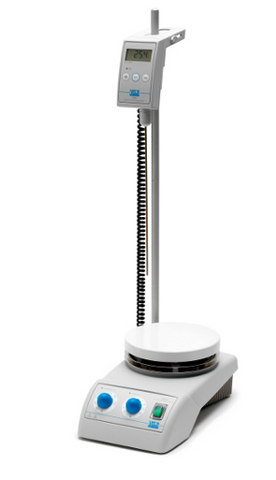

VELP AREX CerAlTop™ Hot Plate Stirrer

Package type	SKU	Price
No vertex connection package	VS:F20510413	$597
with VTF Package	VS:SA20510413	$948

Category	Hot Plate Stirrers
Manufacturer	VELP Scientifica
Country of manufacture	Italy

Median product fulfillment time
Median fulfillment time for VELP Scientifica products

Overview

The AREX has an aluminum alloy heating plate to ensure uniform heat distribution over the entire surface, with a special protective white ceramic coating that ensures easiness of cleaning and excellent resistance to chemicals, scratches and surface abrasions. This hot plate stirrer ensures precise thermoregulation of the heating plate as well as a high degree of reliability and safety. The AREX is designed to last and equipped to ensure maximum protection against leakages with the elevated front panel and dedicated run-off grove.

The control panel is separated from the hot plate, this feature increases the safety rating during use and the durability of the instrument.

The inclination of the front panel has been carefully studied to facilitate use.

The AREX has a socket for the connection of a VTF/VTF EVO Vertex digital thermoregulators for direct temperature control of the liquid.

Electronic speed regulation: up to 1500 rpm
Stirring volume (H2O): up to 20 L
Temperature: up to 370 °C
SpeedServo™: constant speed even when the viscosity changes

Features:

Premium Quality Performance

Outstanding temp. uniformity with CerAlTop™ aluminum alloy heating plate
Excellent resistance to chemicals scratches and surface abrasions
Maximum temperature 370 °C
Accepts up to 20 liter flasks
Electronic speed regulation up to 1500 rpm
Excellent speed control, even at low speeds
SpeedServo™ ensures constant speed even when the viscosity changes
High power PCM-type driving magnet

Reliable Results

Connection for VTF Vertex digital thermoregulator for direct temperature control
Optional VTF incorporates timer for unsupervised operation and increased productivity
Connection for VTF EVO Wireless Digital Thermoregulator
Optional VTF EVO allows the thermoregulation management directly from the PC. Data logging system with ramps and set point setting.

Convenient Format

Available stand-alone or packaged with VTF Vertex digital thermoregulator
Control panel is IP 42 protected from liquid spills with run-off groove
Clear communication: front panel shows °C and rpm
LED interface enriched for alarms

Ergonomic Design

Inclined control panel for easy access and visibility
AluBlocks™ maximize temperature control & save handling time (sold separately)
Run different tubes by combining AluBlocks™ (sold separately)

Key attributes

Maximum volume (L):	20
Minimum Volume (L):	N/A
Speed max (rpm):	1500
Speed min (rpm):	30
Max temperature (◦C):	370 °C
Plate:	Round
Plate material:	aluminum alloy coated with ceramic coating
Torque max (Ncm):	N/A
Controls:	Analog
Timer:	No
Programmable:	No
Reverse rotation:	No
Warranty (years):	3
Weight (lbs):	5.7
Dimensions Width (in):	6.5
Dimensions Height (in):	4.5
Dimensions Length (in):	11

Manufacturer Specifications

GENERAL FEATURES
Construction material:	epoxy painted aluminium structure
Heating plate:	aluminum alloy coated with ceramic coating
Heating plate diameter:	155 mm
Vertex connection:	provided
Protection rating CEI EN 60529:	IP 42
Power:	630 W
Weight:	2.6 Kg (5.7 lb)
Dimensions (WxHxD):	165x115x280 mm (6.5x4.5x11 in)

PERFORMANCE
Electronic speed regulation:	up to 1500 rpm
Electronic temperature regulation:	from room temp. to 370°C
Sample thermoregulation:	± 0.5 °C by using the Vertex thermoregulator
Stirring volume (H2O):	up to 20 liters
Stirring system:	high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation
Counter-reaction:	constant speed
